Turbine Flowmeter

CKAS-FLYW880 Liquid Turbine Flowmeter (without explosion-proof mark)


  FLYW880series liquid turbine flowmeter is a precision flow measuring instrument composed of turbine flow sensor and display instrument. It is a velocity flowmeter manufactured with foreign advanced technology and is one of the ideal flowmeters for liquid flow measurement.

  Liquid turbine flowmeter is widely used in petroleum, chemical industry, metallurgy, water supply,papermaking, environmental protection, food, medicine and other fields. It is suitable for liquid flow measurement without impurities, strong corrosiveness and low viscosity. It can be used together with intelligent flow totalizer or quantitative controller to realize over-range alarm or automatic quantitative control and other functions.

Product Features

1.High accuracy, generally up to Grade 1.5, 1 and 0.5 (supplied by agreement);

2.Good repeatability, with short-term repeatability up to 0.05%~0.2%. Due to its good repeatability, the flowmeter can be highly accurate by regular calibration or online calibration, which is preferred in trade settlement;

3.Three-point correction of instrument coefficient, intelligent compensation of instrument coefficient non-linearity, and site correction;

4.All valid data will be kept for 10 years after power failure;

5.Range ratio, up to 1:15 for medium and large diameter and 1:10 for small diameter;

6.Compact and light structure, convenient installation and maintenance, and large flow capacity;

7.Lower limit of low flow measurement;

8.Wide flow measurement range;

9.Low power consumption and high stability;

10.Power supply: 24VDC, ≤18W;

11.Output power: < 0.5W.

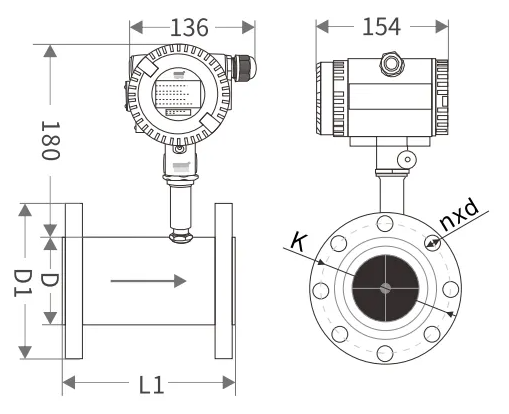

DN4-DN300 flanged turbine flowmeter dimensions

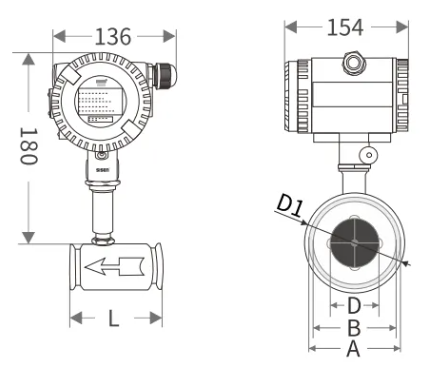

DN4-DN100 clamp connection type turbine flowmeter size diagram

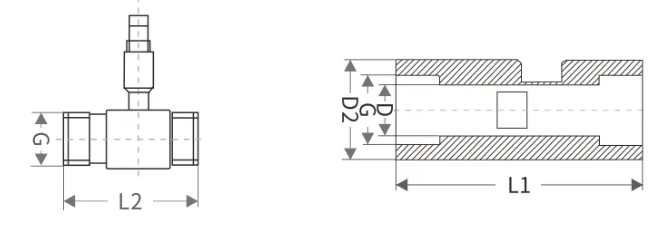

DN4 ~ DN10 threaded connection turbine flowmeter surface (including straight section part) size diagram

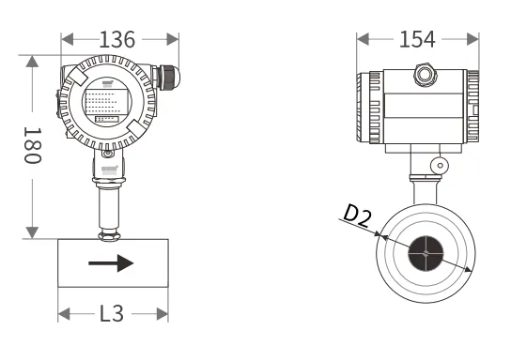

DN15-DN100 threaded connection turbine flowmeter (without straight pipe section) dimensions
